IRCWare was a nice little reversing challenge. The challenge description was:

During a routine check on our servers we found this suspicious binary, although when analyzing it we couldn't get it to do anything. We assume it's dead malware, but maybe something interesting can still be extracted from it?

It’s a linux binary:

% file ircware
ircware: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, stripped

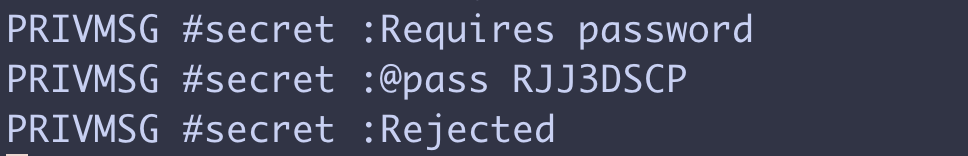

After playing with the binary in a docker container for a bit I realized it needed a key.

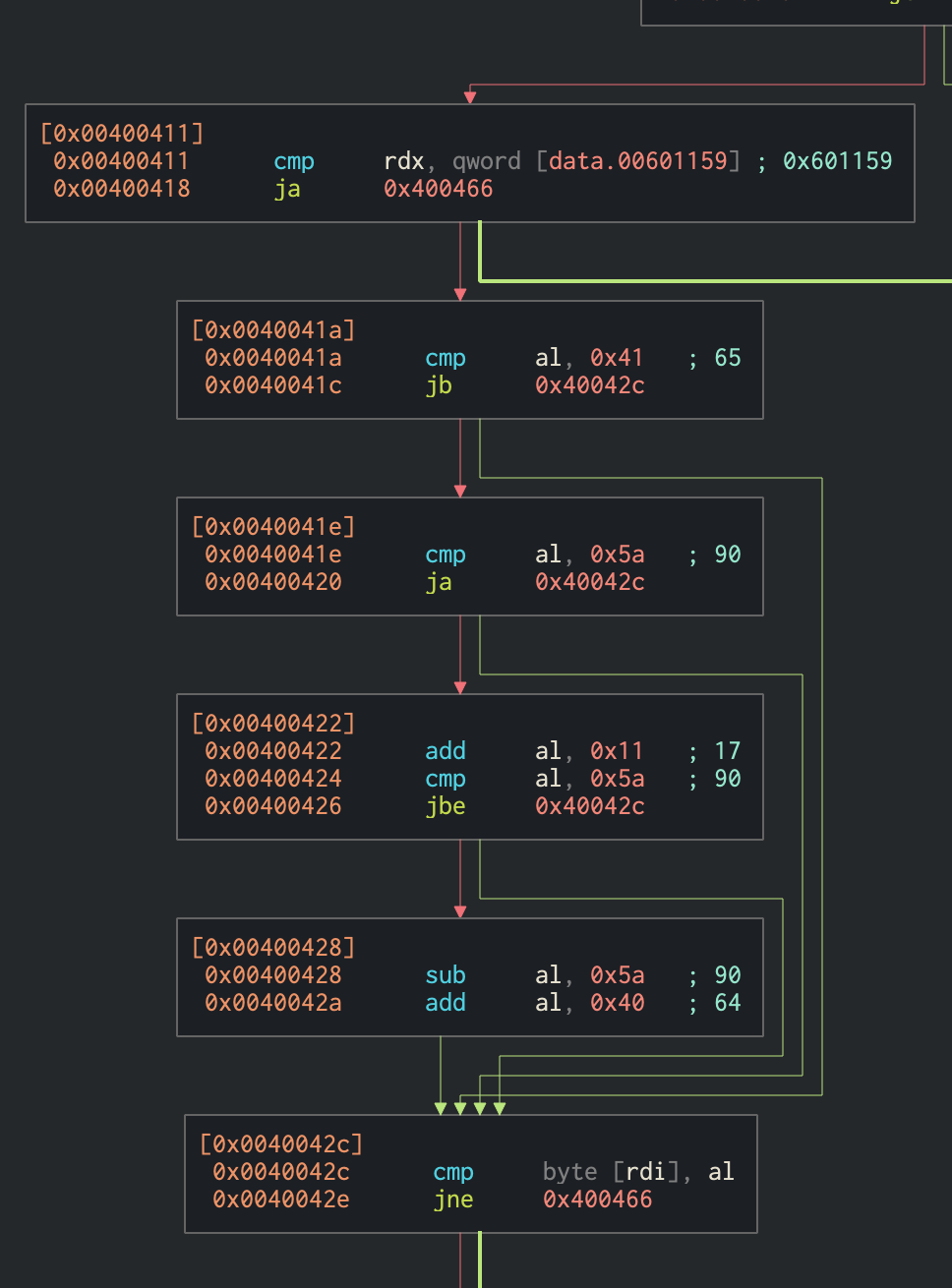

Here’s what the key verification function looks like:

0x601159 is 8, so we know it loops over 8 bytes. It then does an uppercase check 0x41-0x5a is the range of uppercase letters. Does some math to al and then compare the value of al to the value pointed to by rdi which is the string RJJ3DSCP. I wrote a little key brute script to find all the letters.

 1def verify(c,i):
 2    val = ord(c)
 3
 4    if 0x41 <= val and val <= 0x5a:
 5        val += 0x11
 6        if val - 0x5a <= 0:
 7            if val == ord(known_str[i]):
 8                print(c,end="")
 9        else:
10            val -= 0x5a
11            val += 0x40
12            if val == ord(known_str[i]):
13                print(c,end="")

Which outputted ASSMBLY. I then realized that it was impossible to reach the 4th rdi char 3 just using uppercase ascii letters.

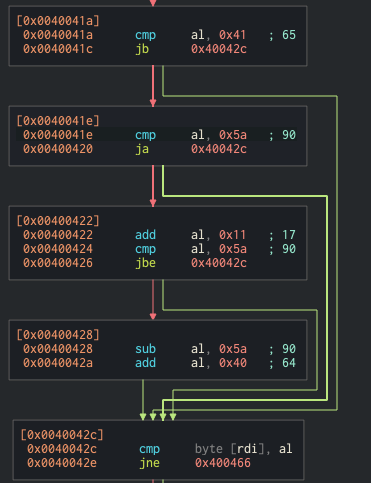

If you look closely at the range check the cmp al, 0x41 and cmp al, 0x5a it doesn’t actually bail out. It just goes directly to the keycheck. Which means if the char isn’t uppercase ascii it just gets checked directly so the 4th char is 3 which maps directly to the target strings 3.

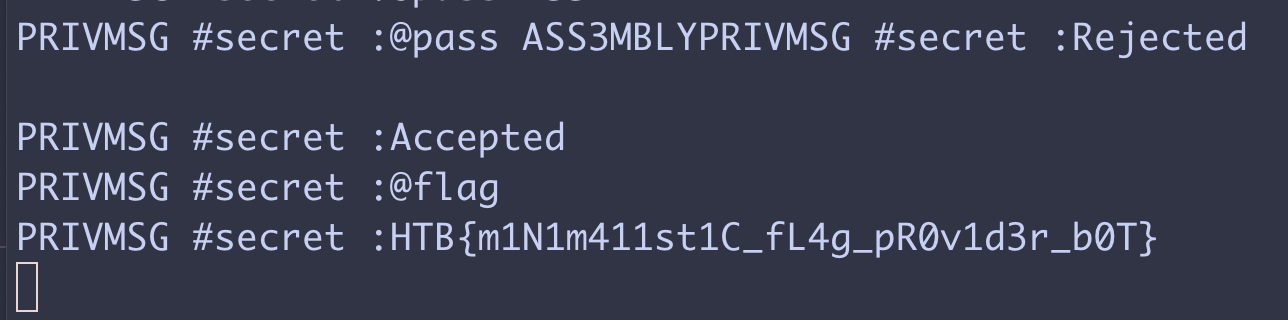

Yielding:

Takeaways
